Lift Master Booms

Availability: In stock


  • Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).



  • Fork pockets for 4,000 pound capacity models measure 7½"W x 2½"H usable on 24" centers. \



  • Usable fork pockets are 7¼"W x 2¼"H for 6,000 and 8,000 pound capacity option.



  • A 36" safety restraint secures the boom to the fork truck for safe operation.



  • Each unit includes two lifting hooks.

Description

Details

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).
Fork pockets for 4,000 pound capacity models measure 7½"W x 2½"H usable on 24" centers. \
Usable fork pockets are 7¼"W x 2¼"H for 6,000 and 8,000 pound capacity option.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Info

Additional Info

Product Type Aftermarket Parts

Related Blog Posts

Thumbnail ID Product Name Height Capacity Lbs Type Additional Spec Weight Lbs Price Qty
Lift Master Booms - Telescoping Lift Master One - 4000 Lb Cap. 463 Lift Master Booms - Telescoping Lift Master One - 4000 Lb Cap. 28" 4,000 lbs. Telescoping - Lift Master One Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers 434 lbs.
$1,030.60
Lift Master Booms - Telescoping Orbit Boom - 4000 Lb Cap. 464 Lift Master Booms - Telescoping Orbit Boom - 4000 Lb Cap. 28" 4,000 lbs. Telescoping Orbit Boom Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers 416 lbs.
$1,458.10

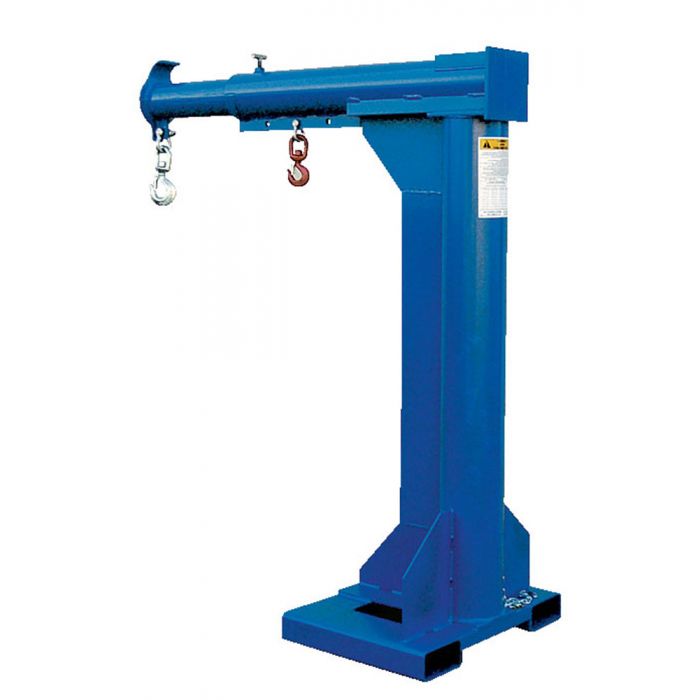

Lift Master Booms - Telescoping High-Rise Boom - 4000 Lb Cap. 465 Lift Master Booms - Telescoping High-Rise Boom - 4000 Lb Cap. 70" 4,000 lbs. Telescoping - High-Rise Boom Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers 875 lbs.
$1,952.60
Lift Master Booms - Telescoping Economy Boom - 4000 Lb Cap. 466 Lift Master Booms - Telescoping Economy Boom - 4000 Lb Cap. 11" 4,000 lbs. Telescoping - Economy Boom Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers 370 lbs.
$811.30
Lift Master Booms - Telescoping Lift Master One - 6000 Lb Cap. 467 Lift Master Booms - Telescoping Lift Master One - 6000 Lb Cap. 28" 6,000 lbs. Telescoping - Lift Master One Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 480 lbs.
$1,399.20
Lift Master Booms - Telescoping Orbit Boom - 6000 Lb Cap. 468 Lift Master Booms - Telescoping Orbit Boom - 6000 Lb Cap. 28" 6,000 lbs. Telescoping - Orbit Boom Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 574 lbs.
$1,826.70
Lift Master Booms - Telescoping High-Rise Boom - 6000 Lb Cap. 469 Lift Master Booms - Telescoping High-Rise Boom - 6000 Lb Cap. 80" 6,000 lbs. Telescoping High - Rise Boom Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 949 lbs.
$2,122.20
Lift Master Booms - Telescoping Economy Boom - 6000 Lb Cap. 470 Lift Master Booms - Telescoping Economy Boom - 6000 Lb Cap. 11" 6,000 lbs. Telescoping - Economy Boom Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 443 lbs.
$1,179.90
Lift Master Booms - Telescoping Lift Master One - 8000 Lb Cap. 471 Lift Master Booms - Telescoping Lift Master One - 8000 Lb Cap. 28" 8,000 lbs. Telescoping - Lift Master One Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 656 lbs.
$1,736.30
Lift Master Booms - Telescoping Orbit Boom - 8000 Lb Cap. 472 Lift Master Booms - Telescoping Orbit Boom - 8000 Lb Cap. 28" 8,000 lbs. Telescoping - Orbit Boom Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 734 lbs.
$2,625.80
Lift Master Booms - Telescoping Economy Boom - 8000 Lb Cap. 473 Lift Master Booms - Telescoping Economy Boom - 8000 Lb Cap. 12" 8,000 lbs. Telescoping - Economy Boom Usable fork pockets: 71/4"W x 21/4"H usable on 24" centers 577 lbs.
$1,515.00
Lift Master Booms - Non-Telescoping Lift Master One - 4000 Lb Cap. 474 Lift Master Booms - Non-Telescoping Lift Master One - 4000 Lb Cap. 23 1/2" 4,000 lbs. Non-Telescoping - Lift Master One Usable fork pockets: 7½"W x 2½"H usable on 24" centers 403 lbs.
$889.50
Lift Master Booms - Non-Telescoping Orbit Boom - 4000 Lb Cap. 475 Lift Master Booms - Non-Telescoping Orbit Boom - 4000 Lb Cap. 27" 4,000 lbs. Non-Telescoping - Orbit Boom Usable fork pockets: 71/2"W x 2 1/2"H usable on 24" centers 558 lbs.
$1,266.20
Lift Master Booms - Non-Telescoping High-Rise Boom - 4000 Lb Cap. 476 Lift Master Booms - Non-Telescoping High-Rise Boom - 4000 Lb Cap. 79" 4,000 lbs. High-Rise Boom Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers. 627 lbs.
$1,272.30
Lift Master Booms - Non-Telescoping Economy Boom - 4000 Lb Cap. 477 Lift Master Booms - Non-Telescoping Economy Boom - 4000 Lb Cap. 12" 4,000 lbs. Non-Telescoping - Economy Boom Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers 258 lbs.
$627.50
Lift Master Booms - Non-Telescoping Lift Master One - 6000 Lb Cap. 478 Lift Master Booms - Non-Telescoping Lift Master One - 6000 Lb Cap. 23 1/2" 6,000 lbs. Non-Telescoping - Lift Master One Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 478 lbs.
$1,256.00
Lift Master Booms - Non-Telescoping Orbit Boom - 6000 Lb Cap. 479 Lift Master Booms - Non-Telescoping Orbit Boom - 6000 Lb Cap. 27" 6,000 lbs. Non-telescoping - Orbit Boom Usable fork pockets: 7 1/4"W x 2 1/4" usable on 24" centers 628 lbs.
$1,569.80
Lift Master Booms - Non-Telescoping High-Rise Boom - 6000 Lb Cap. 480 Lift Master Booms - Non-Telescoping High-Rise Boom - 6000 Lb Cap. 79" 6,000 lbs. Non-Telescoping - High-Rise Boom Usable fork pockets: 7 1/4"W x 21/4"H usable on 24" centers 697 lbs.
$1,577.90
Lift Master Booms - Non-Telescoping Economy Boom - 6000 Lb Cap. 481 Lift Master Booms - Non-Telescoping Economy Boom - 6000 Lb Cap. 23 1/2" 6,000 lbs. Economy Boom - Non-Telescoping Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 503 lbs.
$995.10
Lift Master Booms - Non-Telescoping Lift Master One - 8000 Lb Cap. 482 Lift Master Booms - Non-Telescoping Lift Master One - 8000 Lb Cap. 23 1/2" 8,000 lbs. Non-Telescoping - Lift Master One Usable fork pockets: 7¼"W x 2¼"H usable on 24" centers 615 lbs.
$1,592.10
Lift Master Booms - Non-Telescoping Orbit Boom - 8000 Lb Cap. 483 Lift Master Booms - Non-Telescoping Orbit Boom - 8000 Lb Cap. 27" 8,000 lbs. Non-Telescoping - Orbit Boom Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers 792 lbs.
$2,339.50
Lift Master Booms - Non-Telescoping Economy Boom - 8000 Lb Cap. 484 Lift Master Booms - Non-Telescoping Economy Boom - 8000 Lb Cap. 11 1/2" 8,000 lbs. Non-Telescoping - Economy Boom Usable fork pockets are 7 1/4"W x 2 1/4"H 418 lbs.
$1,329.20
Lift Master Booms - Telescoping Fixed 15 Degrees - 4000 Lb Cap. 1099 Lift Master Booms - Telescoping Fixed 15 Degrees - 4000 Lb Cap. 32.9688" 4,000 lbs. Telescoping - Fixed 15 Degrees Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers 410 lbs.
$932.10
