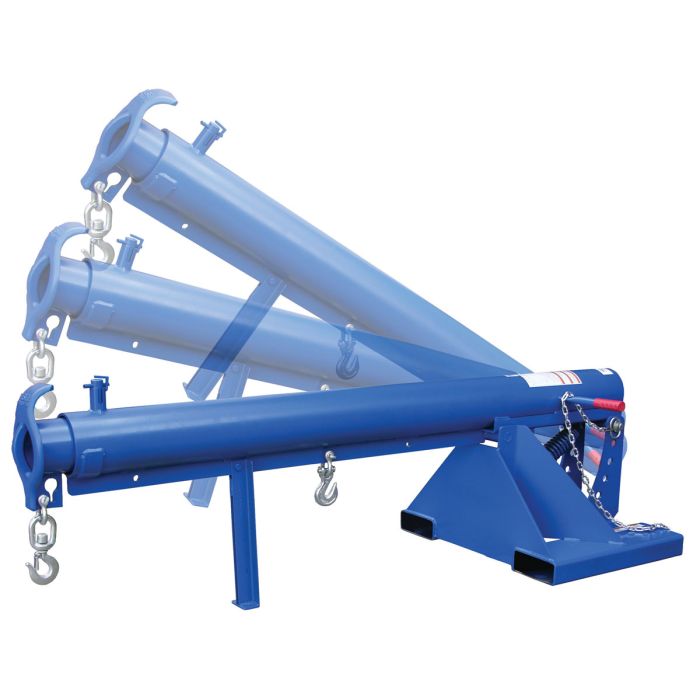

Lift Master Booms - Non-Telescoping Orbit Boom - 4000 Lb Cap.

Status: Available
SKU: LM-OBNT-4-24
$2,617.95
  • Overall Height - 27"
  • Capacity - 4,000 lbs.
  • Usable fork pockets: 71/2"W x 2 1/2"H on 24" centers
  • Net Weight - 558 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping Orbit Boom - 4000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

  • Overall Height - 27"
  • Capacity - 4,000 lbs.
  • Usable fork pockets: 71/2"W x 2 1/2"H on 24" centers
  • Net Weight - 558 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 71/2"W x 2 1/2"H usable on 24" centers
Weight 337.0
Width (in.) 32
Length (in.) 80.875
Height (in.) 26.625
Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 36/78
Single-Hook Capacity at 36" (lb.) 4000
Single-Hook Capacity at 48" (lb.) 3750
Single-Hook Capacity at 60" (lb.) 3500
Single-Hook Capacity at 72" (lb.) 3250
Single-Hook Capacity at 78" (lb.) 3000
Overall Extended Height (in.) 57-3/16
Retracted Hook Height (in.) 5-1/2
Extended Hook Height (in.) 38-1/4
Maximum Tilt Degree 37
Boom Type Orbit Boom
OSHA 1910.178(a)(4)
