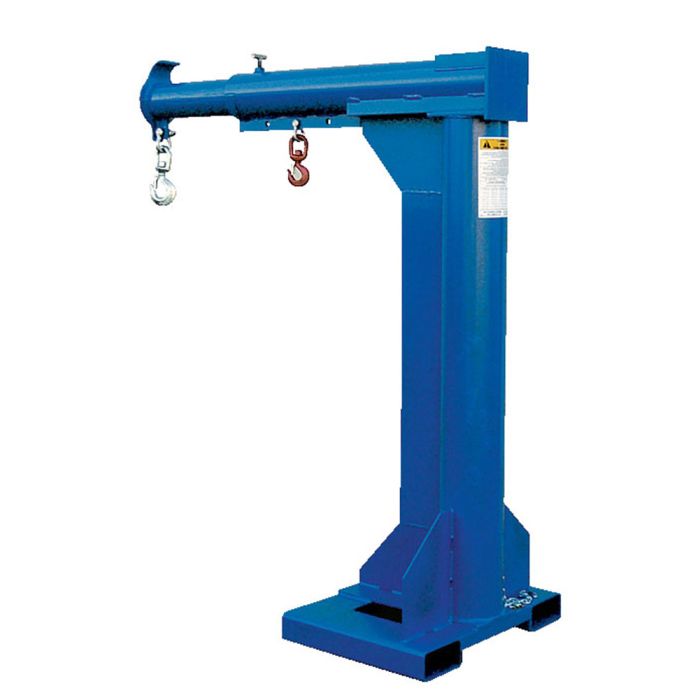

Lift Master Booms - Non-Telescoping High-Rise Boom - 4000 Lb Cap.

Status: Available
SKU: LM-HRNT-4-24
$2,630.97
  • CAPACITY: 4,000 LBS
  • LOST LOAD - 890 LBS
  • OVERALL HEIGHT - 78 9/16"
  • LENGTH - 50 3/8"
  • OVERALL WIDTH - 32"
  • USABLE FORK POCKET - 2 1/2" X 7 1/2"
  • 24" FORK POCKET CENTERS
  • 30" MINIMUM HOOK POINT
  • 48" MAXIMUM HOOK POINT
    EFFECTIVE THICKNESS: LESS THAN 1"
    TOUGH BAKED IN POWDER COATED BLUE FINISH

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping High-Rise Boom - 4000 Lb Cap.

Your Rating

  • CAPACITY: 4,000 LBS
  • LOST LOAD - 890 LBS
  • OVERALL HEIGHT - 78 9/16"
  • LENGTH - 50 3/8"
  • OVERALL WIDTH - 32"
  • USABLE FORK POCKET - 2 1/2" X 7 1/2"
  • 24" FORK POCKET CENTERS
  • 30" MINIMUM HOOK POINT
  • 48" MAXIMUM HOOK POINT
    EFFECTIVE THICKNESS: LESS THAN 1"
    TOUGH BAKED IN POWDER COATED BLUE FINISH

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers.
Weight 810.0
Width (in.) 32
Length (in.) 50.375
Height (in.) 78.5625
Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 30/48
Single-Hook Capacity at 30" (lb.) 4000
Single-Hook Capacity at 36" (lb.) 3750
Single-Hook Capacity at 42" (lb.) 3500
Single-Hook Capacity at 48" (lb.) 3250
Boom Type High Rise Boom
OSHA 1910.178(a)(4)
