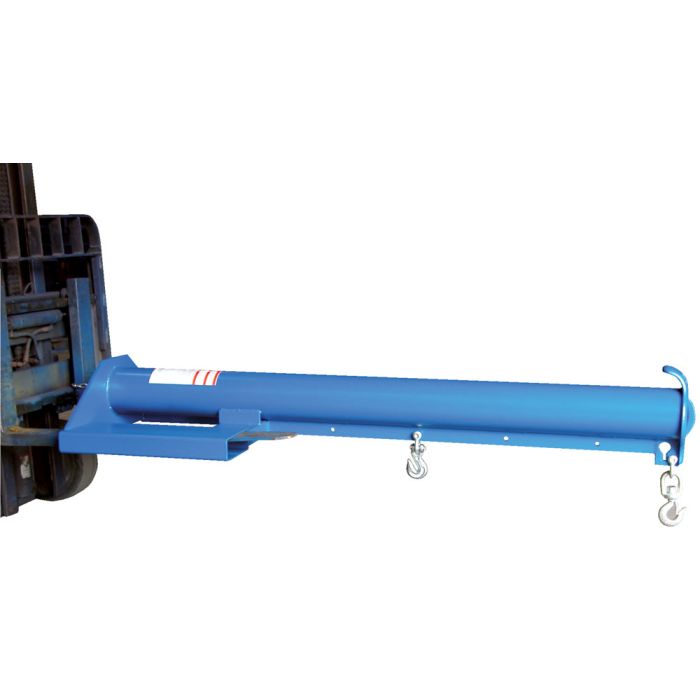

Lift Master Booms - Non-Telescoping Economy Boom - 4000 Lb Cap.

Status: Available
SKU: LM-EBNT-4-24
$936.88
  • Overall Height - 12"
  • Capacity - 4,000 lbs.
  • Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers.
  • Net Weight - 258 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping Economy Boom - 4000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

  • Overall Height - 12"
  • Capacity - 4,000 lbs.
  • Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers.
  • Net Weight - 258 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers
Weight 258.0
Width (in.) 32
Length (in.) 81.625
Height (in.) 13.3125
Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 36/79
Single-Hook Capacity at 36" (lb.) 4000
Single-Hook Capacity at 48" (lb.) 3750
Single-Hook Capacity at 60" (lb.) 3500
Single-Hook Capacity at 72" (lb.) 3250
Single-Hook Capacity at 79" (lb.) 3000
Boom Type Economy Boom
OSHA 1910.178(a)(4)
