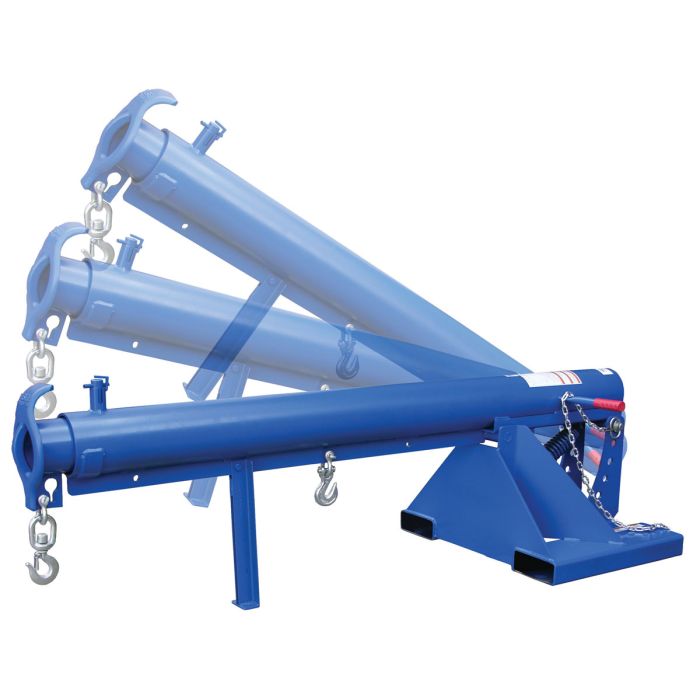

Lift Master Booms - Telescoping Orbit Boom - 4000 Lb Cap.

Status: Available
SKU: LM-OBT-4-24
$3,014.86
  • Overall Height - 28"
  • Capacity - 4,000 lbs.
  • Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers.
  • Net Weight - 416 lbs.

Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Telescoping Orbit Boom - 4000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

  • Overall Height - 28"
  • Capacity - 4,000 lbs.
  • Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers.
  • Net Weight - 416 lbs.

Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers
Weight 433.0
Width (in.) 32
Length (in.) 86.625
Height (in.) 27.6875
Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 36/144
Single-Hook Capacity at 36" (lb.) 4000
Single-Hook Capacity at 48" (lb.) 3750
Single-Hook Capacity at 60" (lb.) 3500
Single-Hook Capacity at 72" (lb.) 3250
Single-Hook Capacity at 84" (lb.) 3000
Single-Hook Capacity at 96" (lbs.) 2750
Single-Hook Capacity at 108" (lbs.) 2500
Single-Hook Capacity at 120" (lbs.) 2250
Single-Hook Capacity at 132" (lbs.) 2000
Single-Hook Capacity at 144" (lbs.) 1750
Overall Extended Height (in.) 99-1/2
Retracted Hook Height (in.) 6
Extended Hook Height (in.) 78-5/16
Overall Extended Length (in.) 146-5/8
Max Rotation Degree 37
Boom Type Orbit Boom
OSHA 1910.178(a)(4)
