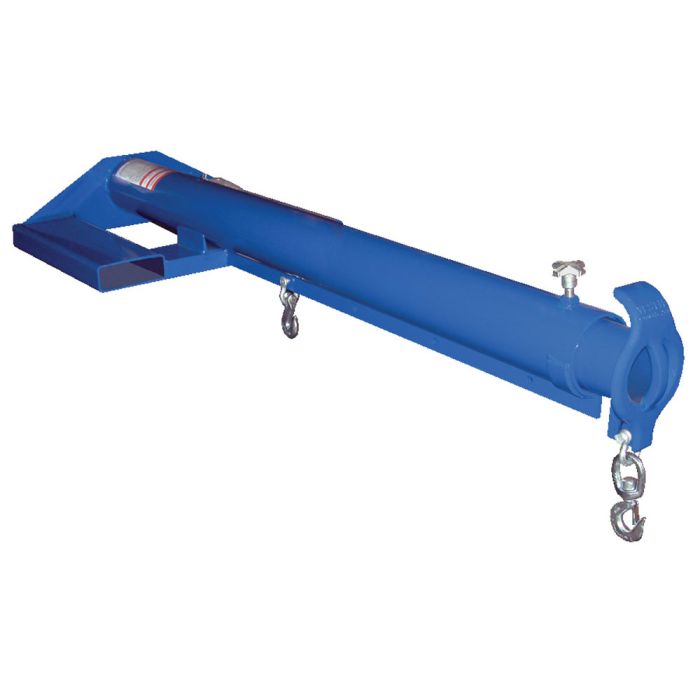

Lift Master Booms - Telescoping Economy Boom - 6000 Lb Cap.
Status: Available
SKU:
LM-EBT-6-24
$1,585.88
- Overall Height - 11"
- Capacity - 6,000 lbs.
- Usable fork pockets are 7 1/4"W x 2 1/4"H
- Net Weight - 443 lbs.
Telescopic units extend to 144" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
Write Your Own Review
Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.
- Overall Height - 11"
- Capacity - 6,000 lbs.
- Usable fork pockets are 7 1/4"W x 2 1/4"H
- Net Weight - 443 lbs.
Telescopic units extend to 144" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
| Additional Spec | Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers |
|---|---|
| Weight | 377.0 |
| Width (in.) | 32 |
| Length (in.) | 86.25 |
| Height (in.) | 13 1/2 |
| Uniform Capacity (lb.) | 6,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/4 x 2-1/4 |
| Restraint Length (in.) | 36 |
| Boom Style | Telescoping |
| Minimum/Maximum Hook Point (in.) | 36/144 |
| Single-Hook Capacity at 36" (lb.) | 6000 |
| Single-Hook Capacity at 48" (lb.) | 5000 |
| Single-Hook Capacity at 60" (lb.) | 4500 |
| Single-Hook Capacity at 72" (lb.) | 4000 |
| Single-Hook Capacity at 84" (lb.) | 3500 |
| Single-Hook Capacity at 96" (lbs.) | 3000 |
| Single-Hook Capacity at 108" (lbs.) | 2600 |
| Single-Hook Capacity at 120" (lbs.) | 2300 |
| Single-Hook Capacity at 132" (lbs.) | 2000 |
| Single-Hook Capacity at 144" (lbs.) | 1800 |
| Overall Extended Length (in.) | 151-1/2 |
| Boom Type | Economy Boom |
| OSHA | 1910.178(a)(4) |
