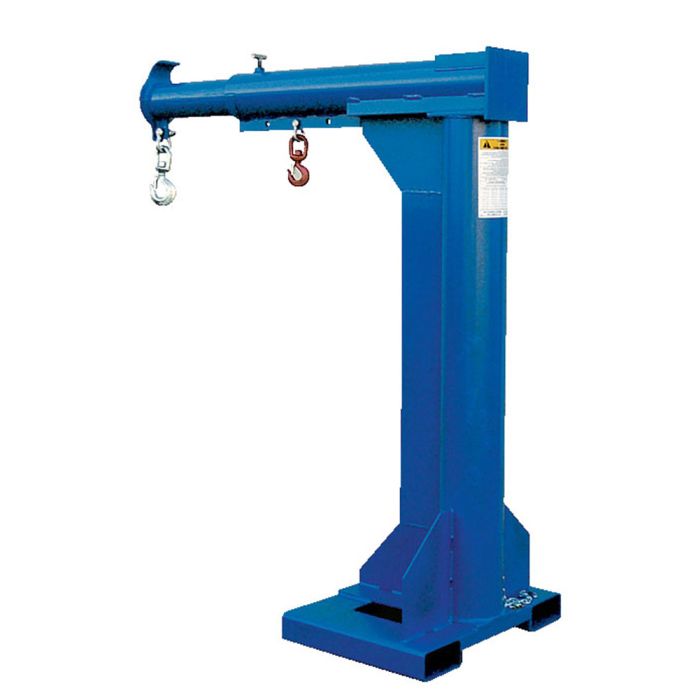

Lift Master Booms - Non-Telescoping High-Rise Boom - 6000 Lb Cap.

Status: Available
SKU: LM-HRNT-6-24
$3,263.90
  • Overall Height 79"
  • Capacity 6,000 lbs.
  • Usable fork pockets are 7 1/4"W x 21/4"H
  • Net Weight 697 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping High-Rise Boom - 6000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long termservice.

  • Overall Height 79"
  • Capacity 6,000 lbs.
  • Usable fork pockets are 7 1/4"W x 21/4"H
  • Net Weight 697 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/4"W x 21/4"H usable on 24" centers
Weight 697.0
Width (in.) 32
Length (in.) 50.375
Height (in.) 78.5625
Uniform Capacity (lb.) 6,000
Fork Pocket Center (in.) 24
Fork Pocket Width (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 30/48
Single-Hook Capacity at 30" (lb.) 6000
Single-Hook Capacity at 36" (lb.) 5000
Single-Hook Capacity at 42" (lb.) 4500
Single-Hook Capacity at 48" (lb.) 4000
Boom Type High Rise Boom
OSHA 1910.178(a)(4)
