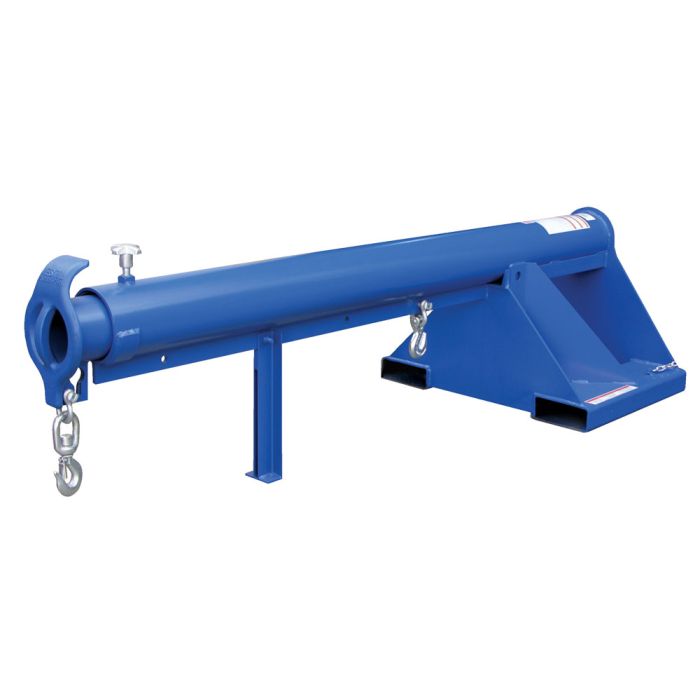

Lift Master Booms - Non-Telescoping Lift Master One - 8000 Lb Cap.

Status: Available
SKU: LM-1NT-8-24
$3,293.86
  • Overall Height - 23 1/2"
  • Capacity - 8,000 lbs.
  • Usable fork pockets are 7¼"W x 2¼"H
  • Net Weight - 615 lbs.


A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping Lift Master One - 8000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

  • Overall Height - 23 1/2"
  • Capacity - 8,000 lbs.
  • Usable fork pockets are 7¼"W x 2¼"H
  • Net Weight - 615 lbs.


A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7¼"W x 2¼"H usable on 24" centers
Weight 476.0
Width (in.) 32
Length (in.) 80.125
Height (in.) 23.5
Uniform Capacity (lb.) 8,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 36/78
Single-Hook Capacity at 36" (lb.) 8000
Single-Hook Capacity at 48" (lb.) 6650
Single-Hook Capacity at 60" (lb.) 6000
Single-Hook Capacity at 72" (lb.) 5300
Single-Hook Capacity at 78" (lb.) 4850
Boom Type Lift Master Boom
OSHA 1910.178(a)(4)
