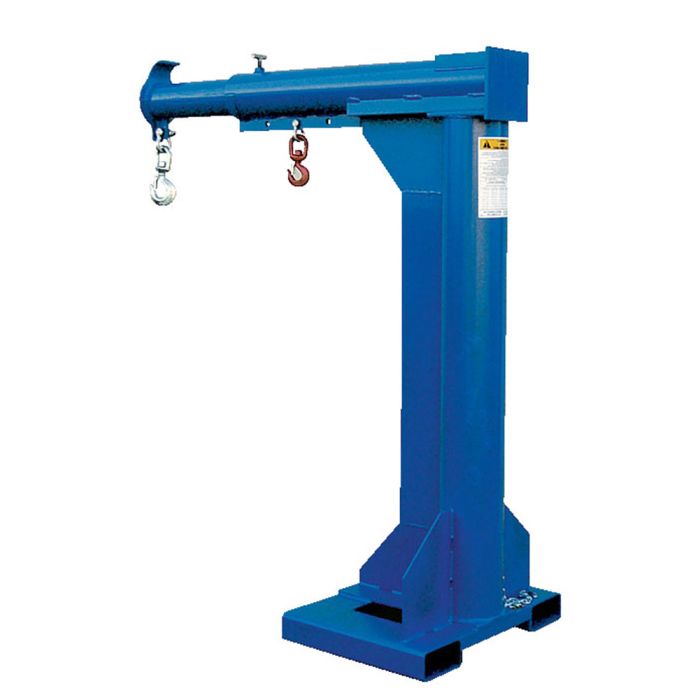

Lift Master Booms - Telescoping High-Rise Boom - 4000 Lb Cap.

Status: Available
SKU: LM-HRT-4-24
$4,038.98
  • CAPACITY: 4,000 LBS
  • LOST LOAD - 955 LBS
  • OVERALL HEIGHT - 79 13/16"
  • LENGTH (RETRACTED) - 54 7/8"
  • LENGTH (EXTENDED) - 92 5/8"
  • OVERALL WIDTH - 32"
  • USABLE FORK POCKET - 2 1/2" X 7 1/2"
  • 24" FORK POCKET CENTERS
  • 30" MINIMUM HOOK POINT
  • 90" MAXIMUM HOOK POINT
  • EFFECTIVE THICKNESS: LESS THAN 1"
  • TOUGH BAKED IN POWDER COATED BLUE BASE FRAME
    W/ YELLOW EXTENSION

Telescopic units extend to 92 5/8" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Telescoping High-Rise Boom - 4000 Lb Cap.

Your Rating

  • CAPACITY: 4,000 LBS
  • LOST LOAD - 955 LBS
  • OVERALL HEIGHT - 79 13/16"
  • LENGTH (RETRACTED) - 54 7/8"
  • LENGTH (EXTENDED) - 92 5/8"
  • OVERALL WIDTH - 32"
  • USABLE FORK POCKET - 2 1/2" X 7 1/2"
  • 24" FORK POCKET CENTERS
  • 30" MINIMUM HOOK POINT
  • 90" MAXIMUM HOOK POINT
  • EFFECTIVE THICKNESS: LESS THAN 1"
  • TOUGH BAKED IN POWDER COATED BLUE BASE FRAME
    W/ YELLOW EXTENSION

Telescopic units extend to 92 5/8" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers
Weight 950.0
Width (in.) 32
Length (in.) 54.875
Height (in.) 79.8125
Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 30/90
Single-Hook Capacity at 30" (lb.) 4000
Single-Hook Capacity at 36" (lb.) 3750
Single-Hook Capacity at 42" (lb.) 3500
Single-Hook Capacity at 48" (lb.) 3250
Single-Hook Capacity at 54" (lb.) 3000
Single-Hook Capacity at 60" (lbs.) 2750
Single-Hook Capacity at 66" (lbs.) 2500
Single-Hook Capacity at 72" (lbs.) 2250
Single-Hook Capacity at 78" (lbs.) 2000
Single-Hook Capacity at 84" (lbs.) 1750
Single-Hook Capacity at 90" (lbs.) 1500
Overall Extended Length (in.) 92-5/8
Boom Type High Rise Boom
OSHA 1910.178(a)(4)
