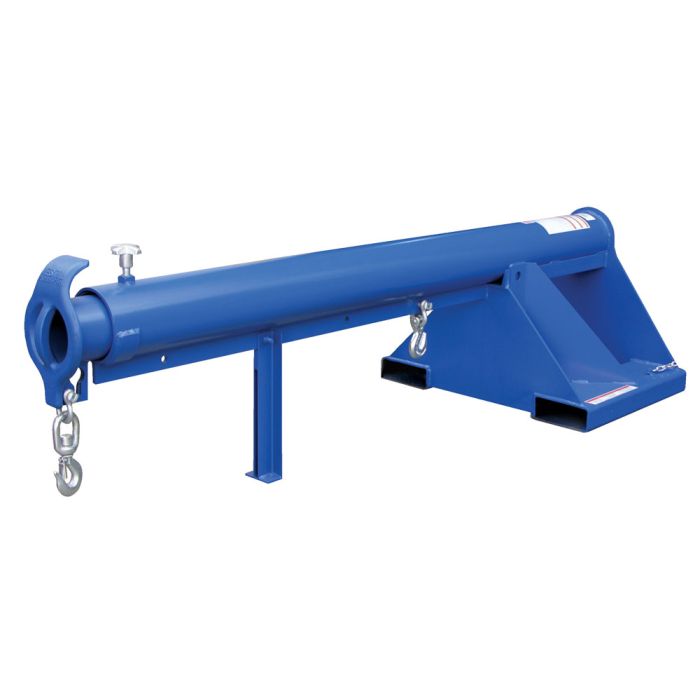

Lift Master Booms - Telescoping Lift Master One - 6000 Lb Cap.

Status: Available
SKU: LM-1T-6-24
$2,893.95
  • Overall Height - 28"
  • Capacity - 6,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 480 lbs.

Telescopic units extend to 144" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Telescoping Lift Master One - 6000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

  • Overall Height - 28"
  • Capacity - 6,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 480 lbs.

Telescopic units extend to 144" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers
Weight 480.0
Width (in.) 32
Length (in.) 86
Height (in.) 25.875
Uniform Capacity (lb.) 6,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 36/144
Single-Hook Capacity at 36" (lb.) 6000
Single-Hook Capacity at 48" (lb.) 5000
Single-Hook Capacity at 60" (lb.) 4500
Single-Hook Capacity at 72" (lb.) 4000
Single-Hook Capacity at 84" (lb.) 3500
Single-Hook Capacity at 96" (lb.) 3000
Single-Hook Capacity at 108" (lb.) 2600
Single-Hook Capacity at 120" (lb.) 2300
Single-Hook Capacity at 132" (lb.) 2000
Single-Hook Capacity at 144" (lb.) 1800
Overall Extended Length (in.) 151-1/4
Boom Type Lift Master Boom
OSHA 1910.178(a)(4)
