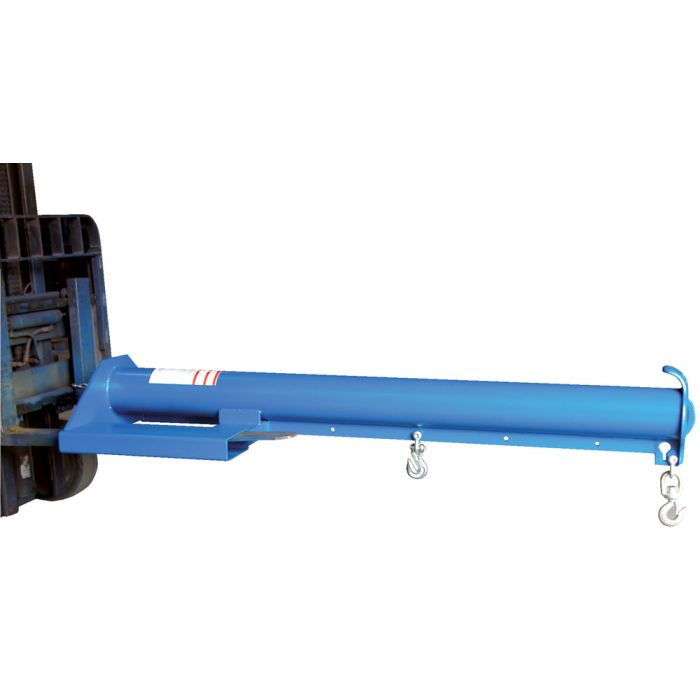

Lift Master Booms - Non-Telescoping Economy Boom - 8000 Lb Cap.

Status: Available
SKU: LM-EBNT-8-24
$2,336.93
  • Overall Height 11 1/2"
  • Capacity 8,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 418 lbs.


A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping Economy Boom - 8000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

  • Overall Height 11 1/2"
  • Capacity 8,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 418 lbs.
Additional Spec Usable fork pockets are 7 1/4"W x 2 1/4"H
Weight 418.0
Width (in.) 32
Length (in.) 80.375
Height (in.) 11.5
Uniform Capacity (lb.) 8,000
Fork Pocket Center (in.) 24
Fork Pocket Width (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 36/78-1/2
Single-Hook Capacity at 36" (lb.) 8000
Single-Hook Capacity at 48" (lb.) 6650
Single-Hook Capacity at 60" (lb.) 6000
Single-Hook Capacity at 72" (lb.) 5300
Single-Hook Capacity at 78-1/2" (lb.) 4850
Boom Type Economy Boom
OSHA 1910.178(a)(4)
