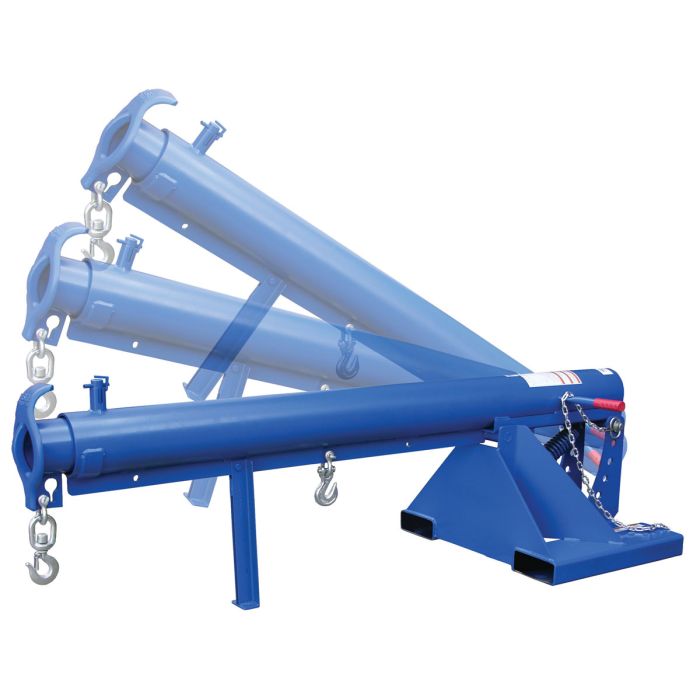

Lift Master Booms - Non-Telescoping Orbit Boom - 8000 Lb Cap.

Status: Available
SKU: LM-OBNT-8-24
$4,839.87
  • Overall Height - 28"
  • Capacity - 8,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 792 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Write Your Own Review
You're reviewing:Lift Master Booms - Non-Telescoping Orbit Boom - 8000 Lb Cap.

Your Rating

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service.

  • Overall Height - 28"
  • Capacity - 8,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 792 lbs.

A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers
Weight 792.0
Width (in.) 32
Length (in.) 79.5
Height (in.) 25.125
Uniform Capacity (lb.) 8,000
Fork Pocket Center (in.) 24
Fork Pocket Width (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Non-Telescoping
Minimum/Maximum Hook Point (in.) 36/78
Single-Hook Capacity at 36" (lb.) 8000
Single-Hook Capacity at 48" (lb.) 6650
Single-Hook Capacity at 60" (lb.) 6000
Single-Hook Capacity at 72" (lb.) 5300
Single-Hook Capacity at 78" (lb.) 4850
Overall Extended Height (in.) 57-3/16
Retracted Hook Height (in.) 4-11/16
Extended Hook Height (in.) 40-3/8
Maximum Tilt Degree 37
Boom Type Orbit Boom
OSHA 1910.178(a)(4)
