Low Profile Parts Hopper 2,000 Lb Cap. - 54 1/4"L x 30"W x 34"H

Status: Unavailable
SKU: HOP-LP-N
$778.88

Volume Cubic Yards  1/2
Uniform Capacity  2,000 lbs.
Overall Size (LxWxH) 54 1/4" x 30" x 34"
Usable Size (WxDxH)  29 1/2" x 49 1/2" x 13 1/2"
Net Wt. 244 lbs.

Write Your Own Review
You're reviewing:Low Profile Parts Hopper 2,000 Lb Cap. - 54 1/4"L x 30"W x 34"H

Your Rating

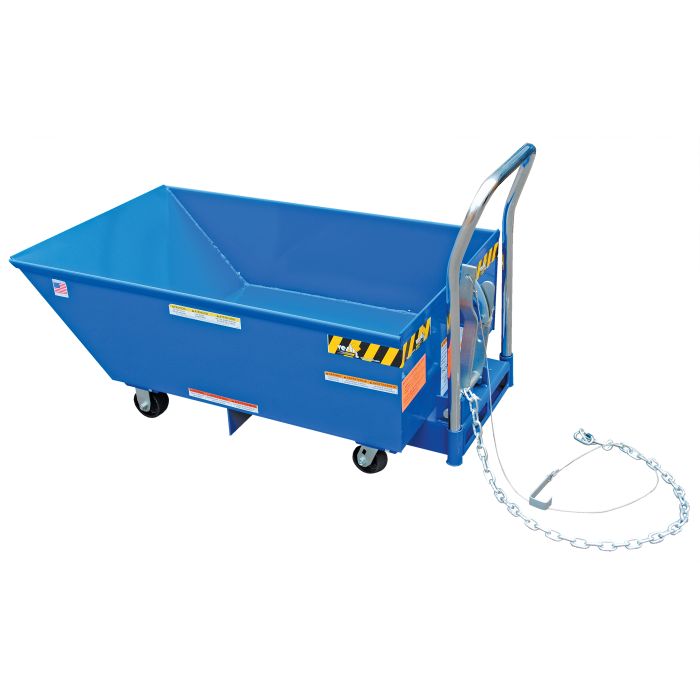

This unique product has been designed to function as a parts hopper that may be dumped with the assistance of a fork truck. The low-profile design (only 18" high) allows the hopper to be placed underneath machinery to be used as a catch basin for parts. The newly designed hopper reduces the hazards, inconveniences and time when collecting parts off the floor. This 1⁄2 cubic yard, 10 gauge, parts hopper has fork pockets for dumping the hopper 90° with a fork truck. Unit rolls smoothly on 4" x 2" phenolic casters, two rigid and two swivel with wheel brakes, and includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground.

Volume Cubic Yards  1/2
Uniform Capacity  2,000 lbs.
Overall Size (LxWxH) 54 1/4" x 30" x 34"
Usable Size (WxDxH)  29 1/2" x 49 1/2" x 13 1/2"
Net Wt. 244 lbs.

Weight 198.0
Width (in.) 29.8125
Length (in.) 54
Height (in.) 33.625
Uniform Capacity (lb.) 2,000
Volume (cu. yd..) 1/3
Fork Pocket Width (in.) 7
Fork Pocket Height (in.) 2
Fork Pocket Center (in.) 11-5/8
Dumping Radius (degree) 90
Caster Quantity/Diameter/Width (in.) (3) 4x2
Caster Material Glass Filled Nylon
Caster Quantity/Type (2) Rigid (1) Swivel w/Brake
Hopper Top Lip Height (chute height ) (in.) 19-1/8
Gauge (in.) 10
