Fork Mounted Drum Lifters

Availability: In stock

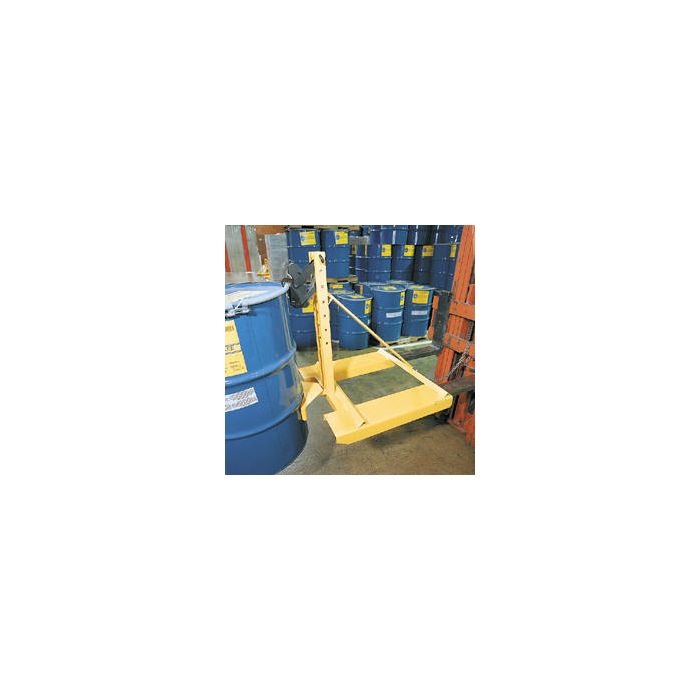

Model FMDL-850 is a knockdown unit that bolts together. Fork pockets and safety chain provide quick and easy installation.


Model FMDDL-1700 attaches to the carriage of most fork trucks and walkie stackers.


The following are fork mounted drum lifters that enable fork truck operators to install or remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the fork truck.


FMDL-1500 & FMDL-3000 - Fork truck attachments utilize a heavy duty single automatic clamping mechanism for handling steel, fiber and plastic chimed drums in high volume applications.


Models FMDL-2000 & FMDDL-4000 feature heavy-duty double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. Each drum is gripped with two upper and lower jaws in heads that are spaced about 6 inches apart.

Description

Details

Fork truck attachments utilize a light duty single automatic clamping mechanism for handling any size steel or plastic chimed drum.

Model FMDL-850 is a knockdown unit that bolts together. Fork pockets and safety chain provide quick and easy installation.

Model FMDDL-1700 attaches to the carriage of most fork trucks and walkie stackers.

The following are fork mounted drum lifters that enable fork truck operators to install or remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the fork truck.

FMDL-1500 & FMDL-3000 - Fork truck attachments utilize a heavy duty single automatic clamping mechanism for handling steel, fiber and plastic chimed drums in high volume applications.

Models FMDL-2000 & FMDDL-4000 feature heavy-duty double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. Each drum is gripped with two upper and lower jaws in heads that are spaced about 6 inches apart.

Additional Info

Additional Info

Product Type Aftermarket Parts

Related Blog Posts

Thumbnail ID Product Name Width Length Height Overall Size Capacity Lbs Description Additional Spec Weight Lbs Price Qty
Fork Mounted Drum Lifters - 31" x 34" x 35" - 750 Lb Cap. 667 Fork Mounted Drum Lifters - 31" x 34" x 35" - 750 Lb Cap. 31" 34" 35" 31"W x 34"L x 35"H 750 lbs. Holds 1 drum. Acceptable Drum Types - Steel, Poly, or Fiber 120 lbs.
$758.00
Fork Mounted Drum Lifters - 33" x 47" x 37" - 1,500 Lb Cap. 668 Fork Mounted Drum Lifters - 33" x 47" x 37" - 1,500 Lb Cap. 33" 47" 37" 33"W x 47"L x 37"H 1,500 lbs. Holds 1 drum. Acceptable Drum Types - Steel, Poly, or Fiber 290 lbs.
$2,395.10
Fork Mounted Drum Lifters - 33" x 47" x 37" - 2,000 Lb Cap. 669 Fork Mounted Drum Lifters - 33" x 47" x 37" - 2,000 Lb Cap. 33" 47" 37" 33"W x 47"L x 37"H 2,000 lbs. Holds 1 drum. Acceptable Drum Types - Steel, Poly, or Fiber 316 lbs.
$3,035.70
Fork Mounted Drum Lifters - 38" x 34" x 35" - 1,500 Lb Cap. 670 Fork Mounted Drum Lifters - 38" x 34" x 35" - 1,500 Lb Cap. 38" 34" 35" 38" W x 34"L x 35"H 1,500 lbs. Holds 2 drums. Acceptable Drum Types - Steel, Poly, or Fiber 190 lbs.
$1,426.00
Fork Mounted Drum Lifters - 33" x 47" x 37" - 3,000 Lb Cap. 671 Fork Mounted Drum Lifters - 33" x 47" x 37" - 3,000 Lb Cap. 33" 47" 37" 33"W x 47"L x 37"H 3,000 lbs. Holds 2 drums. Acceptable Drum Types - Steel, Poly, or Fiber 380 lbs.
$3,706.60
Fork Mounted Drum Lifters - 33" x 47" x 37" - 4,000 Lb Cap. 672 Fork Mounted Drum Lifters - 33" x 47" x 37" - 4,000 Lb Cap. 33" 47" 37" 33"W x 47"L x 37"H 4,000 lbs. Holds 2 drums. Acceptable Drum Types -Steel, Poly, or Fiber 432 lbs.
$4,964.50
