Vestil COIL LIFTER FORK MOUNTED 3000 LB 48 IN

Status: Available
SKU: CCF-48-4
$913.90

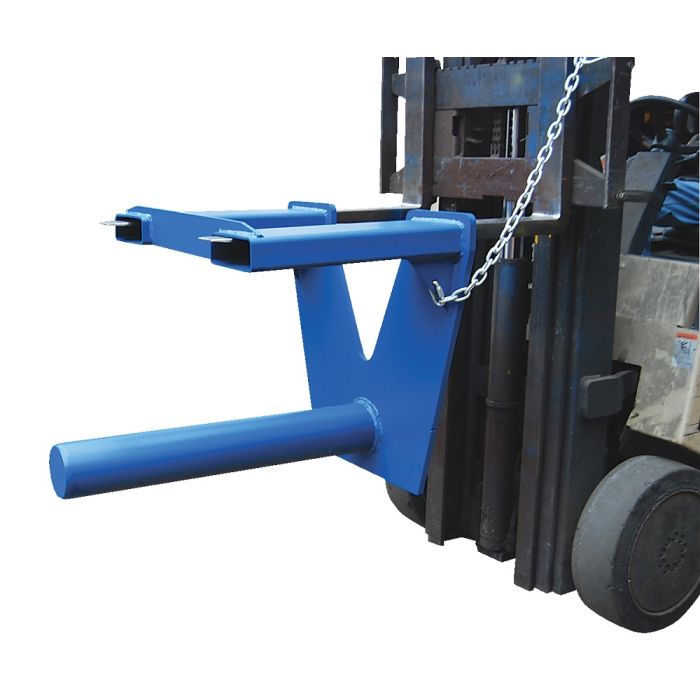

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both class II carriage mount and fork mount. To accommodate multiple core sizes, units can be ordered with either a 4" or 5" diameter ram pole. Coil Lifters are manufactured to accommodate multiple core sizes. Sturdy steel construction and painted blue. Fork mounted units feature 7½" wide x 2" tall (usable) fork pockets while the carriage mounted units are class II with a spring loaded lock pin to secure the unit to fork truck carriage.
Write Your Own Review
You're reviewing:Vestil COIL LIFTER FORK MOUNTED 3000 LB 48 IN

Your Rating

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in class II fork mount. Units can be ordered with  a 5" diameter ram pole. Coil Lifters are manufactured to accommodate multiple core sizes. Sturdy steel construction and painted blue. Fork mounted units feature 7½" wide x 2" tall (usable) fork pockets while the carriage mounted units are class II with a spring loaded lock pin to secure the unit to fork truck carriage.

Weight 288.0
Width (in.) 34
Length (in.) 54
Height (in.) 29.25
Uniform Capacity (lb.) 3,000
Usable Ram Length (in.) 48
Ram Diameter (in.) 4-1/2
Usable Fork Pocket Width (in.) 7-1/2
Usable Fork Pocket Height (in.) 2-1/2
Fork Center (in.) 24
Mount Style Fork, Inverted
Maximum Coil Width (in.) 17-1/2
